FUEL INJECTION

We clean gas fuel injectors

While in the dyno we check for:

•  the correct volume of fuel
•  the correct spray pattern
• low amp electrical pattern
• correct resistance

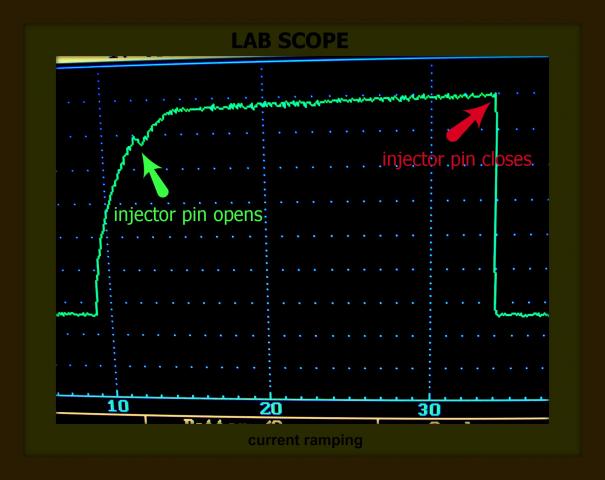

This picture shows a low amp probe pattern. You can see the amperage buiding up.  The bump in the middle is the injector's pin opening.  We can see if the spring has lost tension or is broken in two.

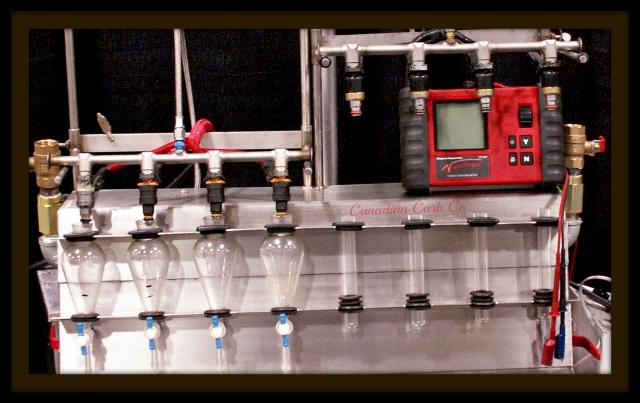

This is the dyno we built for testing and firing fuel injectors.

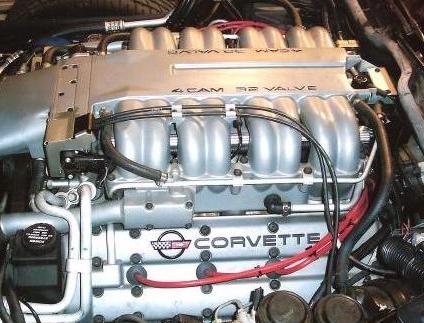

This is a ZR-1 motor It has 2 injectors per cyilinder

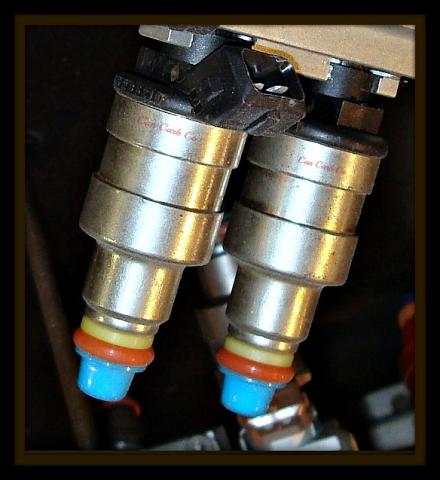

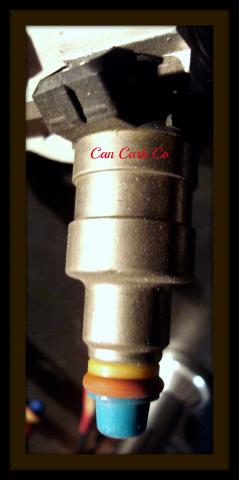

This is a zinc plated marine injector.

This is our injection dyno.
